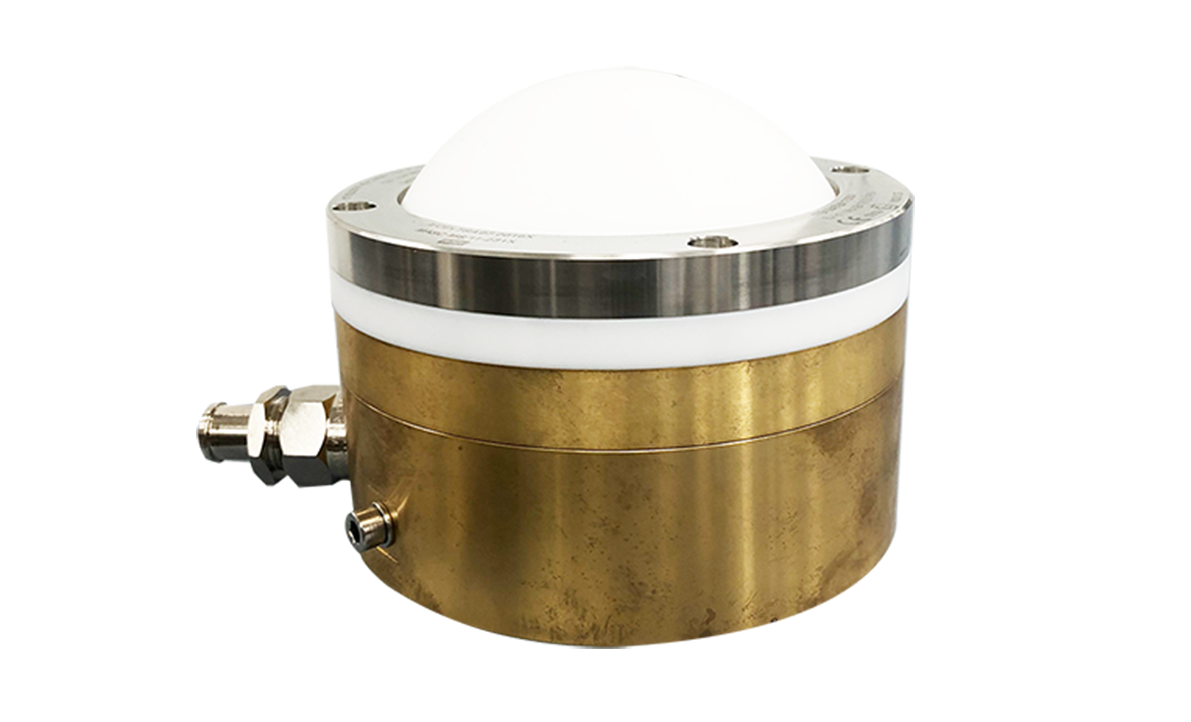

The Oracle RC is a self-contained, flameproof (Ex d) radio control data transceiver supporting radio remote control of mobile mining machinery.
The module communicates with a variety of Pempek manufactured handheld remote control consoles via a 2-way radio data stream.
The Oracle RC supports a range of field bus options including RS-422, Ethernet and Ethernet/IP.
A host PLC communicates with the Oracle via key-press commands from the remote handset, and also send machine status and data logging information back to the handset.
Oracle Flameproof Radio Control Transceiver Features & Benefits:
Self-contained, certified, flameproof (Ex d) housing
No external antenna cable required
Antenna is built into the housing of the product
Flexible power supply options (PoE or 24VDC)
Single gland entry for power and data cable
Built in radio control data integrity protection
Supports PLC safety funcitons such as handset model verification and handset serial number pairing
Simple, easy way to add remote control to any flameproof application
Easy maintenance
Easy configuration
Specifications
Radio Signal Strength: Less than 100 mW
Power Supply: 24VDC
Ambient Temperature: -10°C to +60°C
Ingress Protection: IP 65
Field Bus: RS-422 / Ethernet (Ethernet/IP Available, Contact Sales Representative
Default Firmware: P0TE0001 (RS-422 / Ethernet)
L0MT0801, L0MT0803, L0MT0804 - Radio Band: 902 to 928 MHz
L0MT1201 Radio Band: 902 to 928 MHz
L0MT1401 Radio Band: 868.7 to 869.2 MHz
L0MT1001 Radio Band: 868.125 to 869.925 MHz
L0MT1301 -Radio Band: 865.025 to 866.975 MHz
Typical Application:
Underground mining vehicles
Continuous Miners
Bolter Miners
Road Headers
Longwall Shearers
Feeder Breakers
Mobile Bolters
Shuttle Cars
The Oracle RC Pempek’s Flameproof Radio Remote Control Principle of Operation
Machine sends data logging and display information to remote console
The Oracle Data is a Wireless Ethernet Access Points
For an industrial, flameproof (Ex d) Wireless Data Transceiver Module designed for reliable, high-speed data access in underground mining applications.
The Oracle Data Flameproof Wireless Ethernet Access Points Features & Benefits:
Deployment-ready Wireless Networking solution for underground mining
Self-contained, certified, flameproof (Ex d) housing
No external antenna cable required
Antenna is built into the housing of the product
Flexible power supply options (PoE or 24VDC)
Single gland entry for power and data cable
Simple way to add Wireless Networking connectivity
Cost effective (one product solution
Easy maintenance
Easy configuration
Specifications
Wireless Networking Compliance: IEEE 802.11 b/g (2.4 GHz)
Power Supply: 24VDC or PoE (IEEE 802.3af) (5W Max)
Ambient Temperature: -10°C to +60°C
Ingress Protection: IP 65
Certification IECEx TSA 07.0016X Ex d 1/IIB T6
Typical Application
Underground mining vehicles
Longwall face equipment
Telemetry relay networks
Mesh networks
Communications
Media - Ethernet
Port - 1x 10/100 RJ-45 LAN/WAN
Throughout - Up to 200Mbps
The Oracle Data Pempek’s Flameproof Wireless Radio Data Principle of Operation Underground
The Oracle Data Pempek’s Flameproof Wireless Ethernet Principle of Operation (Wireless Mesh Networks) For Hazardous Areas
